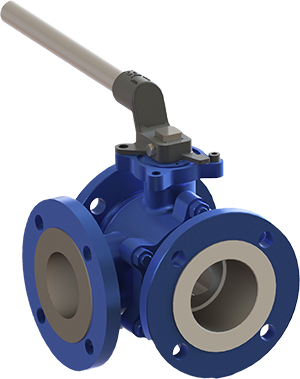

3 Way Ball Valves Flanged L-Ports - SERIES 15L/30L

We are Manufacturer, Supplier, Exporter of 3, Three Way Ball Valves, Ball Valves. Our setup is situated in Pune, Maharashtra, India.

  • Full Bore body, avoids clogging and ensures smooth flow when handling slurries and solid.
  • Design in compliance with ASME B16.34 / BS5351.
  • Ideal valve for diverter application / (1 inlet 2 outlet)
  • Body cavity fillers available
  • Material compliance with NACE specification.
  • Blowout proof stem
  • Low emission packing
  • Cavity filler available.

Leakage Test:
  • Class VI

Actuator mounting flange:
  • DIN/ISO 5211

L-Port Design Configuration:
3-way-ball-valve-leakage

l-port-config

3 Way Screwed Floating Ball Valve


3 Way Screwed Floating Ball Valve

Assem3 REV1


request-quote

SPECIFICATION:

TYPE : Two Piece Flanged End
PORT : Full Bore
SIZE : 15 mm to 200mm NB
Pressure Rating :
ASME #150 PN 20
ASME #300 PN 50
Temperature Range 35 Deg C to 280 Deg C (Soft Seated)
Body Materials Stainless Steel / Carbon Steel / Alloys
Design Standard API 6D rev 23; ISO 17292 rev 2004
End Flanges ASME B16.5 2013
Face to Face Dimension ASME B16.10 Rev 2009
Fire safe design API-607 Rev 2010
Testing API 598 Rev 2009
Sour Service NACE MOR 0175 Rev 2009
Documents BS/EN 10204-3.1 REV 2004
valves

TECHNICAL DETAILS :

Sankey side entry 3-Way ball valve offers diverting and mixing / selection flow patterns and often eliminates the need for two valves. The L-port configuration is available as a 2 piece in two seat thus is extremely versatile in various configurations and the full port design is easily automated as it comes in and is available with various seat materials for various pressure and temperature range.

Areas of application
Chemical / Pharmaceutical / Food / Pharmaceutical / Petrochemical / Energy / Plastics / Oil and Gas / Cement and lubrication

KEY FEATURES:

  • Full Bore body, avoids clogging and ensures smooth flow when handling slurries and solid.
  • Body cavity fillers available
  • All sides sealed
    All sides of the ball valve are sealed.
    All sides tight – independent product inlet
  • Blowout proof stem
  • Low emission packing

25MM FB #2500

Sr.No. PART NAME STAINLESS STEEL CARBON STEEL QTY
1 BODY ASTM A479 SS316 A105 1
2 END CONN. ASTM A479 SS316 A105 1
3 BALL ASTM A276 SS316 ASTM A276 SS316 1
4 STEM ASTM A479 SS316 ASTM A479 SS316 1
5 SEAT PTFE PTFE 2
6 STEM SEAL GRAPHITE GRAPHITE 2
7 GLAND SS316 MS 1
8 GLAND BEARING DELRIN DELRIN 1
9 SPACER SS316 SS316 1
10 STEM THRUST WASHER GFT GFT 1
11 BODY SEAL GRAPHITE GRAPHITE 1
12 STEM O-RING VITON VITON 1
13 END CONN. O-RING VITON VITON 1
14 STUD ASTM A193 GR. B8M ASTM A193 GR.B7 6
15 NUT ASTM A194 GR. 8M ASTM A194 GR.2H 6
16 LEVER SS410 SS410 1
17 STOPER MS MS 1
valves

enquiry

50MM FB #400

Sr.No. PART NAME STAINLESS STEEL CARBON STEEL QTY
1 BODY ASTM A351 CF8M ASTM A216 WCB 1
2 END CONN. ASTM A351 CF8M ASTM A216 WCB 2
3 BALL ASTM A276 SS316 ASTM A276 SS316 1
4 STEM ASTM A479 SS316 ASTM A479 SS316 1
5 SEAT PTFE PTFE 2
6 STEM SEAL GRAPHITE GRAPHITE 2
7 GLAND SS316 MS 1
8 GLAND BEARING DELRIN DELRIN 1
9 SPACER SS316 SS316 1
10 STEM THRUST WASHER GFT GFT 1
11 BODY SEAL GRAPHITE GRAPHITE 2
12 STEM O-RING VITON VITON 1
13 STUD ASTM A193 GR. B8M ASTM A193 GR.B7 4
14 NUT ASTM A194 GR. 8M ASTM A194 GR.2H 8
15 LEVER SS410 SS410 1
16 STOPER MS MS 1
17 ALLEN BOLT MS MS1

25MM FB #2500

Sr.No. PART NAME STAINLESS STEEL CARBON STEEL QTY
1 BODY ASTM A351 CF8M ASTM A216 WCB 1
2 END CONN. ASTM A351 CF8M ASTM A216 WCB 2
3 BALL ASTM A276 SS316 ASTM A276 SS316 1
4 STEM ASTM A479 SS316 ASTM A479 SS316 1
5 SEAT PTFE PTFE 2
6 STEM SEAL GRAPHITE GRAPHITE 2
7 GLAND SS316 MS 1
8 GLAND BEARING DELRIN DELRIN 1
9 SPACER SS316 SS316 1
10 STEM THRUST WASHER GFT GFT 1
11 BODY SEAL GRAPHITE GRAPHITE 2
12 STEM O-RING VITON VITON 1
13 END CONN. O-RING VITON VITON 2
14 STUD ASTM A193 GR. B8M ASTM A193 GR.B7 8
15 NUT ASTM A194 GR. 8M ASTM A194 GR.2H 8
16 LEVER SS410 SS410 1
17 STOPER MS MS 1
18 ALLEN BOLT MS MS 1

40MM X 65MM FB #150 JACKETED

Sr.No. PART NAME STAINLESS STEEL CARBON STEEL QTY
1 BODY ASTM A351 CF8M ASTM A216 WCB 1
2 INSERT ASTM A479 SS316 ASTM A479 SS316 1
3 BALL ASTM A276 SS316 ASTM A276 SS316 1
4 STEM ASTM A479 SS316 ASTM A479 SS316 1
5 SEAT PTFE PTFE 2
6 STEM SEAL GRAPHITE GRAPHITE 2
7 GLAND SS316 MS 1
8 GLAND BEARING DELRIN DELRIN 1
9 SPACER SS316 SS316 1
10 STEM THRUST WASHER GFT GFT 1
11 BODY SEAL GRAPHITE GRAPHITE 1
12 STEM O-RING VITON VITON 1
13 BODY SEAL GRAPHITE GRAPHITE 1
14 END CONN. O-RING VITON VITON 1
15 JACKET TOP MS MS 1
16 JACKET BOTTOM MS MS 1
17NOZZLESS304SS304 2
18LEVERSS410SS410 1
19ALLEN BOLTMSMS 1
20STOPERMSMS 1

25MM FB #150 WAFER TYPE

Sr.No. PART NAME STAINLESS STEEL CARBON STEEL QTY
1 BODY ASTM A479 SS316 A105 1
2 INSERT ASTM A479 SS316 A105 1
3 BALL ASTM A276 SS316 ASTM A276 SS316 1
4 STEM ASTM A479 SS316 ASTM A479 SS316 1
5 SEAT PTFE PTFE 2
6 STEM SEAL GRAPHITE GRAPHITE 2
7 GLAND SS316 MS 1
8 GLAND BEARING DELRIN DELRIN 1
9 SPACER SS316 SS316 1
10 STEM THRUST WASHER GFT GFT 1
11 BODY SEAL GRAPHITE GRAPHITE 1
12 STEM O-RING VITON VITON 1
13 END CONN. O-RING VITON VITON 1
14 LEVER SS410 SS410 1
15 STOPER MS MS 1
16 ALLEN BOLT MS MS 1

50MM FB #150

Sr.No. PART NAME STAINLESS STEEL CARBON STEEL QTY
1 BODY ASTM A351 CF8M ASTM A216 WCB 1
2 END CONN. ASTM A351 CF8M ASTM A216 WCB 1
3 BALL ASTM A276 SS316 ASTM A276 SS316 1
4 STEM ASTM A479 SS316 ASTM A479 SS316 1
5 SEAT PTFE PTFE 2
6 STEM SEAL GRAPHITE GRAPHITE 2
7 GLAND SS316 MS 1
8 GLAND BEARING DELRIN DELRIN 1
9 SPACER SS316 SS316 1
10 STEM THRUST WASHER GFT GFT 1
11 BODY SEAL GRAPHITE GRAPHITE 2
12 STEM O-RING VITON VITON 1
13 END CONN. O-RING VITON VITON 1
14 STUD ASTM A193 GR.B8M ASTM A193 GR.B7 4
15 NUT ASTM A194 GR.8M ASTM A194 GR.2H 4
16 LEVER SS410 SS410 1
17 STOPER MS MS 1
18 ALLEN BOLT MS MS 1

32MM FB #400 L-PORT

Sr.No. PART NAME STAINLESS STEEL CARBON STEEL QTY
1 BODY ASTM A351 CF8M ASTM A216 WCB 1
2 END CONN. ASTM A351 CF8M ASTM A216 WCB 2
3 BALL ASTM A276 SS316 ASTM A276 SS316 1
4 STEM ASTM A479 SS316 ASTM A479 SS316 1
5 SEAT PTFE PTFE 2
6 STEM SEAL GRAPHITE GRAPHITE 2
7 GLAND SS316 MS 1
8 GLAND BEARING DELRIN DELRIN 1
9 SPACER SS316 SS316 1
10 STEM THRUST WASHER GFT GFT 1
11 BODY SEAL GRAPHITE GRAPHITE 2
12 STEM O-RING VITON VITON 1
13 STUD ASTM A193 GR.B8M ASTM A193 GR.B7 4
14 NUT ASTM A194 GR.8M ASTM A194 GR.2H 8
15 LEVER SS410 SS410 1
16 STOPER MS MS 1
17 ALLEN BOLT MS MS 1

80MM FB #150 CAVITY FILLED

Sr.No. PART NAME STAINLESS STEEL CARBON STEEL QTY
1 BODY ASTM A351 CF8M ASTM A216 WCB 1
2 END CONN. ASTM A351 CF8M ASTM A216 WCB 1
3 BALL ASTM A182 SS316 ASTM A182 SS316 1
4 STEM ASTM A182 SS316 ASTM A182 SS316 1
5 SEAT PTFE PTFE 2
6 STEM SEAL GRAPHITE GRAPHITE 2
7 GLAND SS316 MS 1
8 GLAND BEARING DELRIN DELRIN 1
9 SPACER SS316 SS316 1
10 STEM THRUST WASHER GFT GFT 1
11 BODY SEAL GRAPHITE GRAPHITE 1
12 STEM O-RING VITON VITON 1
13 CAVITY 1 PTFE PTFE 1
14 CAVITY 2 PTFE PTFE 1
15 STUD ASTM A193 GR.B8M ASTM A193 GR.B7 8
16 NUT ASTM A194 GR.8M ASTM A194 GR.2H 8
17 STOPER MS MS 1
18 LEVER SS410 SS410 1

100MM X 150MM #150 TANK BOTTOM BALL VALVE

Sr.No. PART NAME STAINLESS STEEL CARBON STEEL QTY
1 BODY ASTM A351 CF8M A105 1
2 INSERT ASTM A479 SS316 A105 1
3 BALL ASTM A182 SS316 ASTM A182 SS316 1
4 STEM ASTM A182 SS316 ASTM A182 SS316 1
5 SEAT PTFE PTFE 2
6 STEM SEAL GRAPHITE GRAPHITE 1
7 GLAND SS316 MS 1
8 STEM THRUST WASHER GFT GFT 1
9 STEM O-RING VITON VITON 2
10 END CONN. O-RING VITON VITON 2
11 CAVITY 1 PTFE PTFE 1
12 CAVITY 2 PTFE PTFE 1
13 LEVER SS410 SS410 1
14 STOPER MS MS 1
